€515.00*

Available, delivery time 1-3 days

Handlebar Diameter
Product number: i4307
Product information "SL AX Lamphead"
The new version of the SL AX lamp head: Now with up to 3800 lumens of main beam and improved light pattern.
The StVZO-approved bicycle lamp comes with high beam, low beam and daytime running light function as well as
a Bluetooth remote control.
The brightness sensor of the SL AX detects darkness and automatically switches from daytime running light to
low beam, simultaneously releasing the high beam. This has a range of up to 370m and ensures the best visibility
away from the city and on trails. If the low beam is active, the Bluetooth remote control can be used to switch to
the high beam and back again. With the help of the "Peppi" holder, it is securely attached next to the handlebar grip.
The lamp head is mounted next to the stem with the quick release made of CNC-machined aluminium.
The housing of the SL AX is also made of CNC-machined and black anodised aluminium and is particularly
durable, robust and heat-resistant. The SL AX is also both impact and water resistant according to IK09 and IP68.
Properties "SL AX Lamphead"
Bluetooth: with Bluetooth Remote Control
Handlebar Diameter: 25.4 mm, 31.8 mm, 35 mm
Lamp Holder: Quickrelease
Lamp Type: Bikelight
Lumens: 3800 lumens
Luminous Duration: 1:20 h (6.9Ah), 1:50 h (10.0Ah), 2:40 h (13.8Ah)
Luminous Duration (max.): 25 h (6.9 Ah), 35 h (10.0Ah), 49 h (13.8Ah)
Lux: 340 Lux
Material: Aluminium CNC-milled (6061-T6), black anodised
Measurements: 45x85x48 mm
Protection Class: IP 09 (impact resistance), IP 67 (water resistance)
StVZO Approval: Yes
Weight: 160g Lamphead

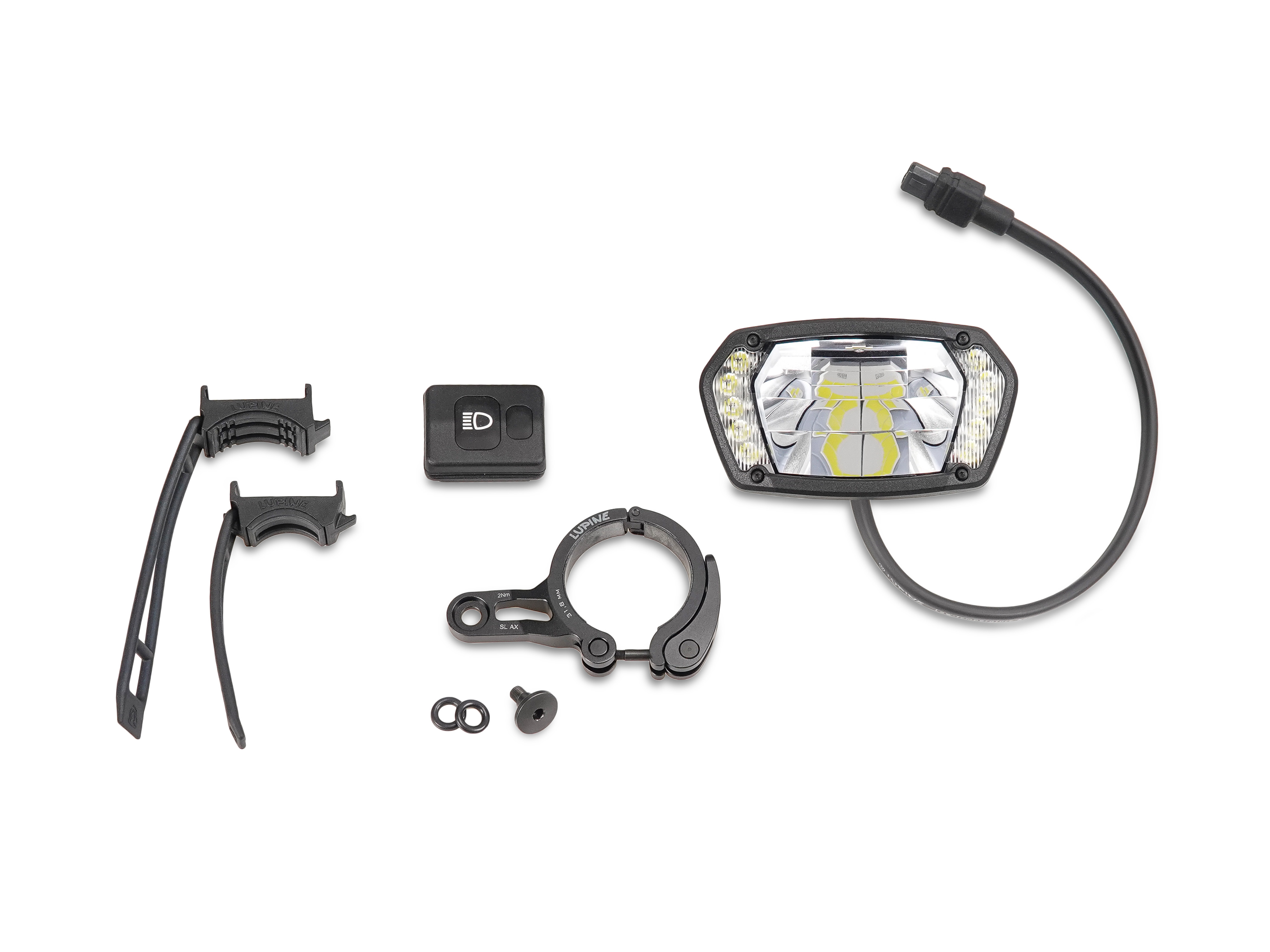

Delivery content "SL AX Lamphead"
  • SL AX lamphead
  • Quickrelease mount 31.8 mm
  • Bluetooth remote control
  • Remote control mount Peppi V5 & Peppi V5 XL
  • Manual

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


6.9 Ah SmartCore Battery
SmartCore battery with LED display with a capacity of 6.9 Ah/50Wh.This 240g battery can be used with all our battery lamps exept Alpha. A short and a long hook&loop strap with anti-slip coating are included for attaching the battery to the bicycle frame, for example.Dimensions: 79 x 41 x 48mm. Cable length at battery approx. 12cm.

€149.00*
10.0 Ah SmartCore Battery
SmartCore battery with LED display with a capacity of 10.0 Ah/70Wh.This 350g battery can be used with all our battery lamps exept Alpha.For attaching the battery e.g. to the bicycle frame, a short and a long hook&loop strap with anti-slip coating are included. Dimensions: 157x52x31 mm. Cable length at battery approx. 12cm.

€190.00*
13.8 Ah SmartCore Battery
SmartCore battery with LED display with a capacity of 13.8 Ah/99Wh.This battery weighs 430g and can be used with all our battery lamps. For attaching the battery e.g. to the bicycle frame, a short and a long Hook&loop strap with anti-slip coating are included. Dimensions: 146x41x48 mm. Cable length at battery approx. 12cm.

€249.00*
Battery Hook&Loop Strap
Size: 45 cm
Longer battery strap with a length of 45cm.A silicone anti-slip coating on the inside of the Velcro strap prevents the battery from slipping.

€4.00*
Battery Plug Protection
Battery protection cap to protect the plug from dust and moisture during transportation. Pull the ring over the cable for installation.

€3.00*
Lamphead Plug Protection
Lamphead protection cap to protect the plug from dust and moisture during transportation. Pull the ring over the cable for installation.

€3.00*

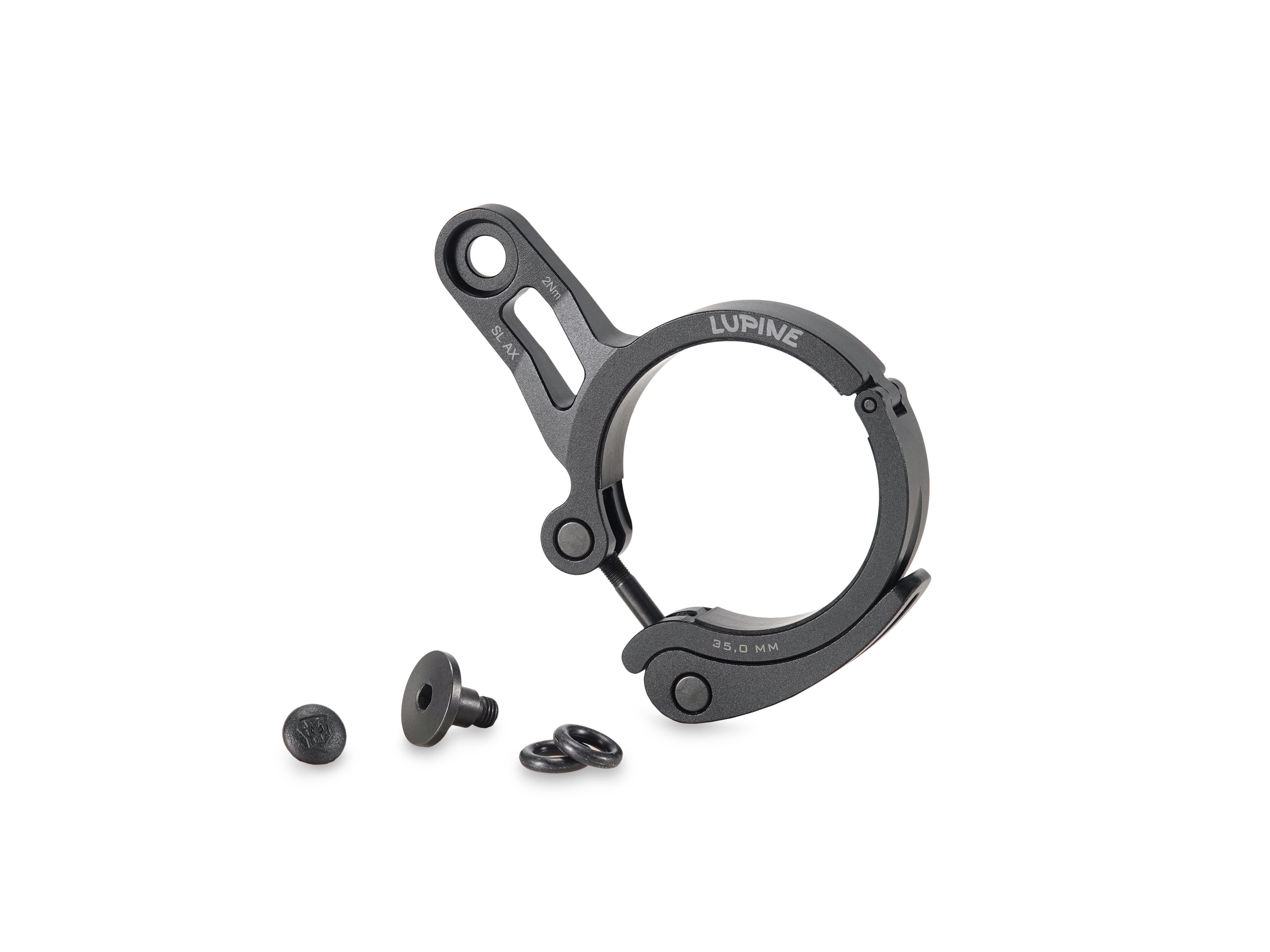

SL AX Quickrelease Mount
Handlebar Diameter: 35 mm
SL AX quickrelease mount for mounting on bars with fitting diameter. It is made of CNC-milled, black anodised aluminium.The rubber pad prevents scratches and ensures a firm hold.Distance from the mounting hole of the holderscrew to the edge approx. 20mm, clamp width 9mm.

€34.00*
Flexmount Quickrelease
Handlebar Diameter: 35 mm
Flexmount quick release for attaching a lamphead to bars with a suitable diameter.It is made of CNC-milled and then black anodised aluminium. The rubber pad prevents scratches and ensures a firm hold on the handlebar.Distance from the mounting hole of the bracket screw to the bracket edge minimum 27mm, maximum 40mm, clamp width 8mm.Suitable for the models Neo, Piko, Blika, Wilma, Betty, SL Mono, SL Nano AF, SL AF, SL Minimax AF, SL AX.

€37.00*
